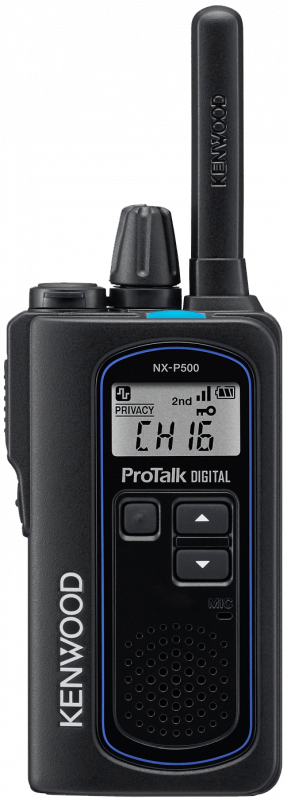

NX-P500

  • Frequency Range: 450-470 MHz
  • Preset: 99 frequencies
  • Number of Channels: 6
  • Operating Voltage: 3.8 V DC ± 10 %
  • Battery Life: (5-5-90 duty cycle)*1 with KNB-81L: (3.6V/2200mAh)
    Approx. 14 hours (Battery saver off)
    Approx. 15.5 hours (Battery saver on)
  • Operating Temperature Range: -14 °F to +140 °F (-10 °C to +60 °C)
  • Frequency Stability: ±2.5 ppm
  • Dimensions (W x H x D )
    Projections not included: 1.97 x 3.70 x 1.07 in (50 x 94 x 27 mm)
  • Weight (net):
    Radio with KNB-81L 5.64 oz (160 g)
  • RF Power Output: 2 W / 1 W
  • Audio Output (Internal / External): 750 mW / 100 mW
  • FCC ID: K44500000

Included Accessories

  • Kenwood ProTalk NX-P500 Radio
  • KNB-81L – 1 2200mAh Li-Ion Battery Pack
  • KSC-50CR – Charger
  • KBH-22W – Belt Clip Holder/Swivel Clip
  • Owner’s Manual

Downloadable Documents
—————-


Spec Sheet


Owners Manual
